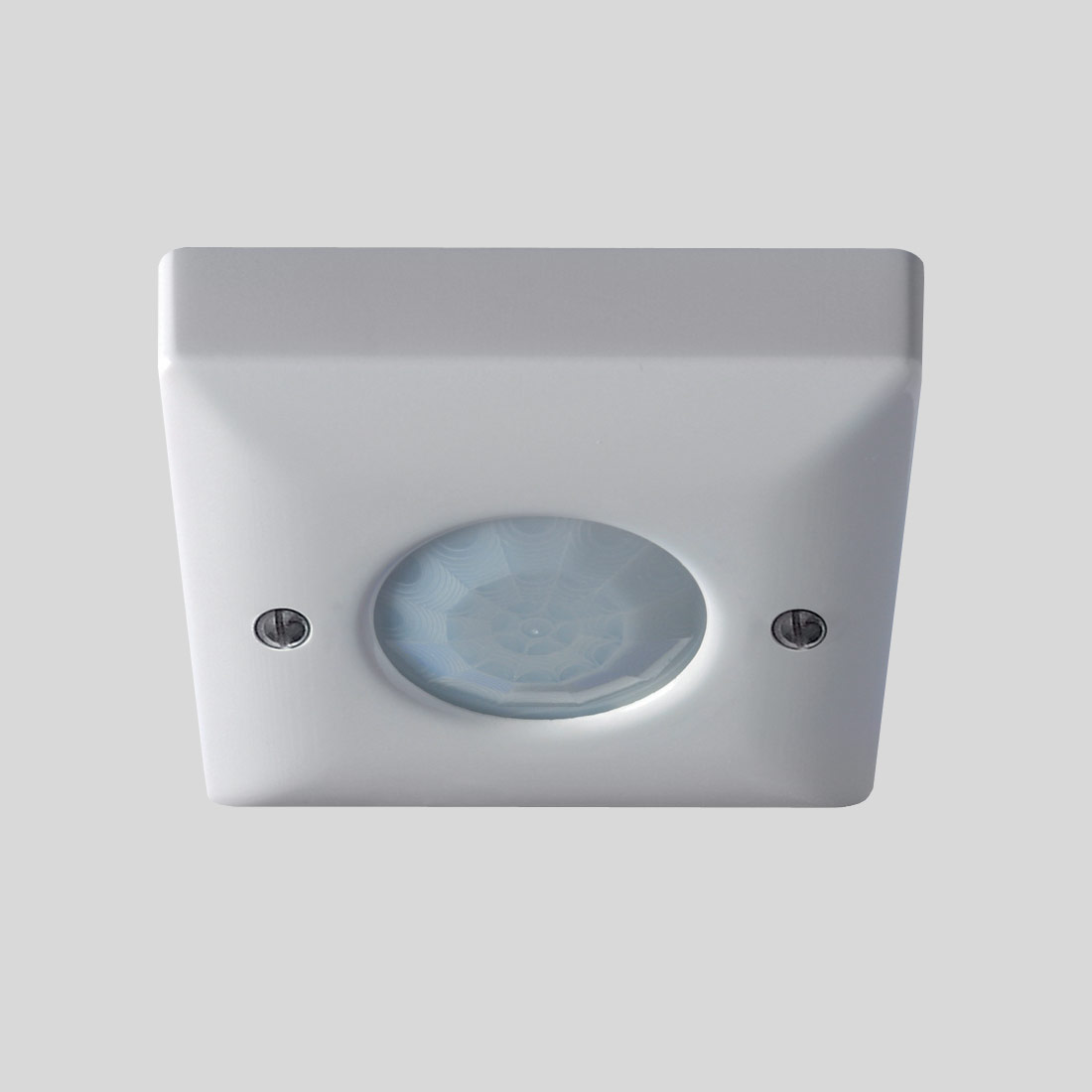

CESF PIR
Ceiling Surface Mounted.
These Surface-mounted models are ideal for solid ceilings. The CESFPIR is a hard wired version and can be mounted on a square pattress box (order code PABO)
Specification
Detection Zone
360°
Time lag range
10 seconds to 40 minutes in 9 steps
Photocell range
30 to 1000 lux, and inactive
Loading
Up to 6 amps (1500W) of resistive, fluorescent, LED Drivers and LED lamps and fittings. Up to 3 amps (750W) of electronic and wire wound transformer loads. Up to 2 amps (500W) of CFL and 2D lamps. Up to 1 amp (250W) of fans.
Dimensions
86 x 86 x 22mm. Requires back box depth 16mm
